high quality ice cube making machine price industrial ice cube machine CV1000

FOB Reference Price:Get Latest Price
$8,000.00 - $12,000.00 / Sets | 1 Set/Sets available in stock (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Power(W):
6700
Ice Shape:
ICE CUBES
Dimension(L*W*H):
1350mm*1370mm*1850mm
Condition:
New
Capacity:
1000kg/day
Place of Origin:
Guangdong, China
Brand Name:
KOLLER
Model Number:
CV1000
Voltage:
380V, 50Hz, 3P
Weight:
800kg
Certification:
CE
Application:
direct eating, or used for mixed wine, drinks
cooling way:
air cooling
refrigerant:
R22/R404A
Compressor:
Copeland/Bitzer
ice cube size:
22mm*22mm*22mm or 29mm*29mm*22mm
freezing time:
20 minutes
ice falling way:
hot gas defrost
ice packing system:
semi-automatic packing system
material for mainframe:
SUS304
Certificaition:
CE, FORM E, SGS, SASO
After-sales Service Provided:
Engineers available to service machinery overseas
Warranty:
12 months after delivery
Supply Ability
Supply Ability:
50 Set/Sets per Month even more
Packaging & Delivery
Packaging Details
1. Each set is wrapped in plywood case.
Port
FOB Guangzhou port
PRODUCT DESCRIPTION

KOLLER CUBE ICE MACHINE SERIES

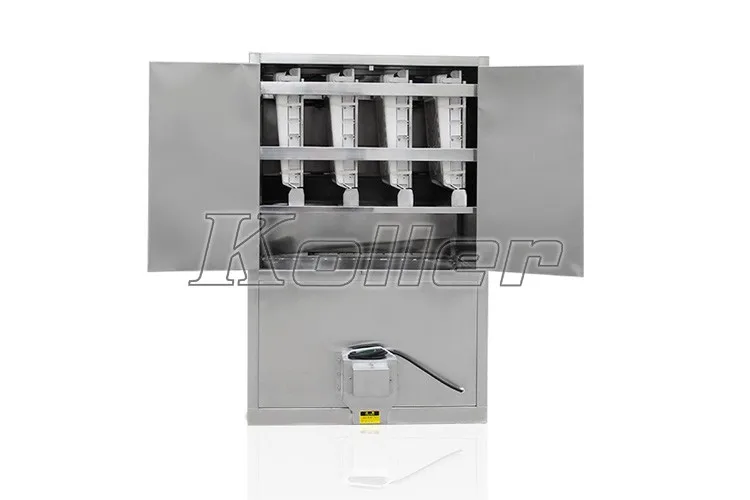

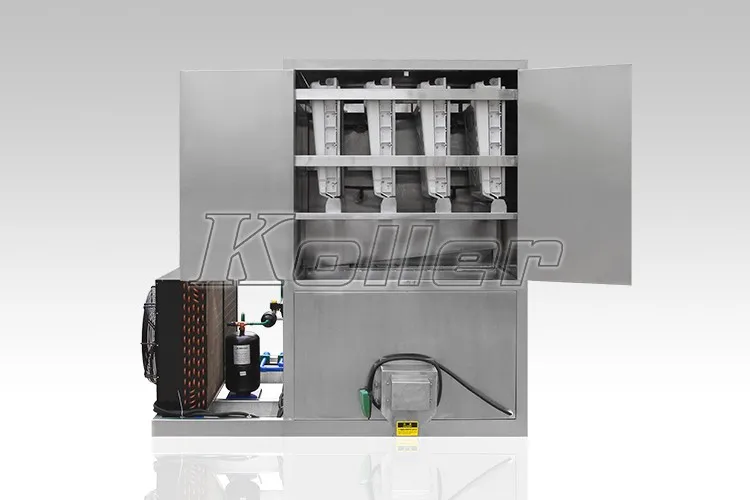

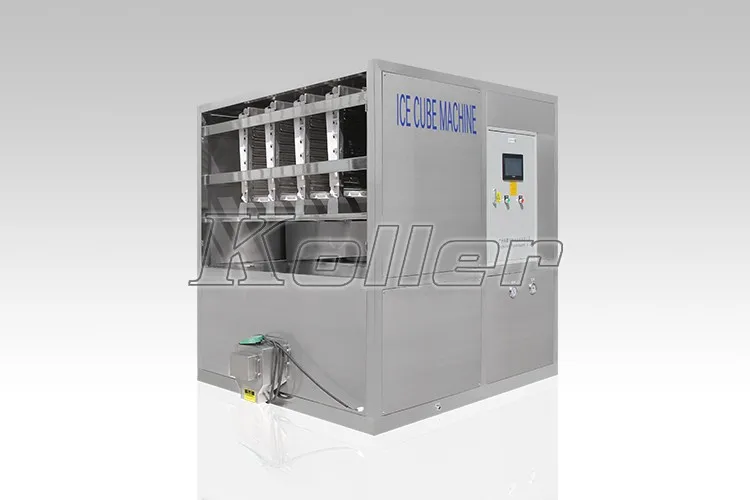

CV1000,1 tons/day ice cube machine for ice factory use!

Koller CV series Ice Cube Machine has firstly adopted the three leading technologies: adjustable ice thickness, automatic water supplying, automatic ice freezing and ice falling. It is an edible ice cube machine and has completely solved the problems of uneven ice thickness and ice falling difficulties. With the combined use of flat-plate heat exchange technology and hot gas circulating defrost technology, it has greatly improved the ice cube machine's capacity, energy consumption, and performance stability.


KOLLER ICE CUBE MACHINE FEATURES


1, Large Capacity: different capacity from 1ton/day to 25tons/day. Its production is stable and can reach 90%-95% even in summer. When the ambient temp is lower than 20℃, input water temp is lower than 25℃, its production can reach 100%-130%.


2, Safe and Sanitary:  Reasonable design for the frame and structure and water system with SUS304 ensure the ice cube sanitary for human consumption

ALL SUS304 MADE ICE BIN

All SUS304 made water circulating system

3, Lower Power Consumption: Greatly save energy, only 75~80KW*H are consumed to produce one-ton ice; when the ambient temp is lower than23℃, it just consumes 70-85 KWH/Ton, compared with other small ice cube maker (normally 150-165 KWH/Ton), its energy saving rate reaches more than 30%.

4. Automatic Operation:  Equipped with Siemens PLC + Touch Screen Controlling System, which allows multiple functions such as automatic timer function for start and shut down; ice stopping production when the ice bins are full. All parameters can be easily set, all running history can be checked.

GERMANY SIEMENS PLC

Highly automatic self-controlling system

Touch Screen Design

Easy Understand, Parameter Set, History Checking, Timer function

5, Labor Saving Design:  Special ice outlet. Ice discharging automatically, No need taking ice by hand which can guarantee the ice clean and sanitary, meanwhile, it is matched with ice packing system to package the ice with plastic bags

Ice Outlet: Pedal Switch Controlling, easier for ice cube packing without the hand touching the ice cubes

All Ice cubes can be separated into individual cubes with KOLLER screw design.

Ice cubes fills in the ice bin

Use a digital scale and LDPE bag for ice cube packing

Use bag sealing machine to finish the packing

5, HIGH-QUALITY PARTS: Adopts the world's famous brand components, which will guarantee the best refrigeration effect and working condition.

ICE CUBE SIZE OPTIONS:
ONE ICE MACHINE CAN PRODUCE ONLY ONCE KIND OF ICE! PLEASE CHOOSE THE MOST SUITABLE ONE.
1
22mm*22mm*22mm
380 granular each grid
2
29mm*29mm*22mm
240 granular each grid
3
38mm*38mm*22mm
132 granular each grid
Note:
The ice making time is around 20 min/batch, the actual ice making time will be different according to the working condition, like the water and ambient temperature. No matter how the temperature change, the ice thickness is same!

ALL KOLLER ICE CUBE MACHINE MODELS ARE HERE!

*Ice making capacity would be changed depending on installation place, refrigerator's freezing capability, or surrounding usage environment such as outside temperature
* Please request a specification for each machine type.
*Specification will be changed without any notification.

FAQ

1, What should I prepare to buy the ice machine from you?

First, we will need to confirm your exact requirement on the ice machine's daily capacity, how many tons of ice do you want to produce/consume per day?


Second, the install place power/water confirmation, for most big ice machines, will need run under 3 Phase industrial use power, most Europ/Asia countries is 380V, 50Hz,3P, most North and South America countries are using 220V,60Hz,3P, please confirm with our salesman and make sure it is available in your factory.


Third, with all above details confirmed, then we are able to provide you the exact quotation and proposal, a Proforma Invoice will be provided to guide you the payment[T/T or L/C or Trade Assurance Order on Alibaba.com directly] to close the deal, for all our standard design, we will need about 35~45 working days on the production.


Fourth. After the production done, the salesman will send you test report or video to confirm the ice machines production capacity and performance, then you can arrange the balance and we will arrange the delivery for you. All documents including the Bill of Lading, Commercial Invoice, and Packing List will be provided for your importation.

2, How to install the ice machine?

For most air cooling type ice machine, as it is all in one design, you need only connect the power and water, then it can be put to use. Manual book and video will be provided you guide you the installation and operation.


For the water cooling type ice machine or the split designed ice machine, will need to assemble the cooling tower and connect the water pipe..., Manual book and video will be provided you guide you the installation and operation. We can also send our engineer to guide you each step, only need you to take care of the VISA, TICKETS, foods, and accommodation.

3, What if I buy your ice machine, but I cannot find the solution for the problem?

All KOLLER ice plants come out with 12 months full warranty. If the machine breaks down in 12 months, KOLLER will send the parts for free, even send the technician over if situation needed. When beyond the warranty, KOLLER will supply the parts and service only for factory cost. Please provide the copy of Sales Contract and describe the problems appeared.

Dear friends, don't hesitate to send your inquiry if you are interested!

We would be very glad to be in service for you, as the most professional ice machine manufacturer with the biggest factory in China, we are pleased to attach our best offer. We are definitely to contact you within 12 hours after getting your inquiry.
