KOLLER 5 tons plate ice machine for fish keeping civil projects PM50

FOB Reference Price:Get Latest Price
$1,000.00 - $30,000.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Power(W):
4000
Ice Shape:
plate ice
Dimension(L*W*H):
2200*2120*2140(mm)
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
KOLLER
Model Number:
PM50
Voltage:
380V,50Hz/220V,380V,440V,60Hz/3P
Weight:
2000kg
Certification:
CE
Capacity:
10tons
Control system:
SIEMENS PLC program system
Compressor brand:
BITZER / BOCK/Maneurop
Cooling way:
Air cooling system
Evaporator:
Falling film plate evaporator
Ice thickness:
5mm to 20mm(normal 8~10mm)
Material:
304 stainless steel
Refrigerant:
R22/ R404a
Electric component:
Castel solenoid valve Italy brand, Danfoss expansion valve Fance brand
Ice thickness controlling:
Water level control
Power consumption:
60kwh/ton
Warranty:
12 months after delivery
After-sales Service Provided:
Engineers available to service machinery overseas
Supply Ability
Supply Ability:
40 Set/Sets per Month
Packaging & Delivery
Packaging Details
Each set is wrapped in plywood case.
Port
Guangzhou Port
Lead Time :
30 working days after getting the deposit
Why Choose US

Koller Business Partners


Why Choose US?

1. We are specialized in the research,design,manufacture and sale of of ice machines and refrigeration equipments.

2. We has passed ISO9001,CE,SGS,TUV and some other certificates.

3. We has become the partner of Beijing Olympic Games in 2008,Shanghai World Expo in 2010,Guangzhou Asia Games in 2010 and London Olympic Games in 2012.

4. We has won the first China Ice Start Award(CISA) in China Ice Making Annual Conference in 2011.

5. We adopt world-famous brand components,to ensure ice machine’s running steady running.

6. We provide perfect pre-sales and after-sales service.

7.We are Excellent Brand of China Ice Machine Industry,The Drafting Committee of National Ice Machine Industry Standard,Produce & Academic Research Strategy Cooperating Partner with Tsing Hua University.

Product Description




KOLLER  Plate Ice  Machine PM50

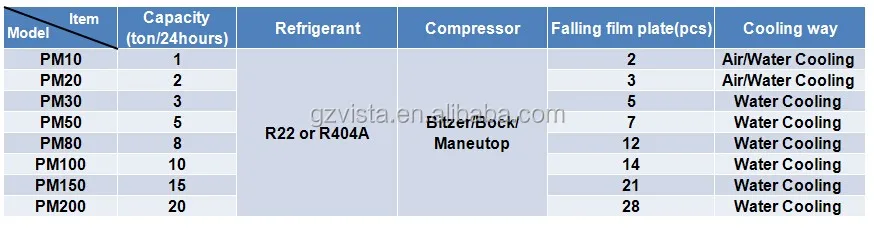

Other models

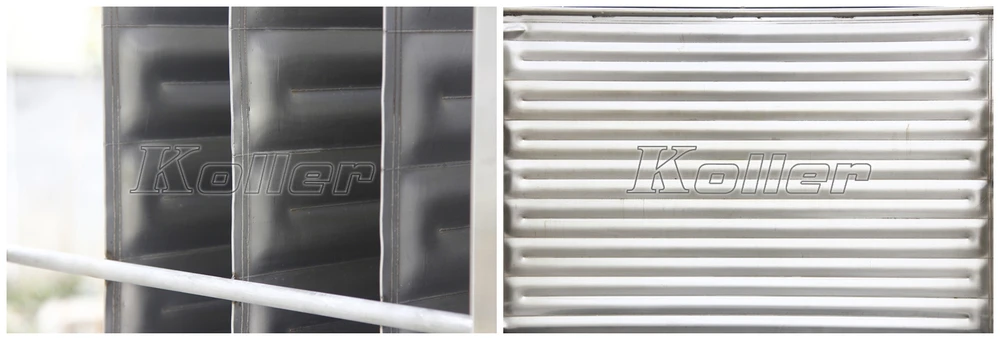

SUS304 falling film plate

The material is sus304 which adopts food-grade. It can guarantee the plate ice to be sanitary, clean and harmless to human. It is edible and widely applied in supermarket, pelagic fishery, meat processing ,medical, transportation,engineering industry and so on.







Botton controlling panel and Touch screen controlling panel



Both equipmnts meet different demands. Someone likes botton, while others like touch screen.

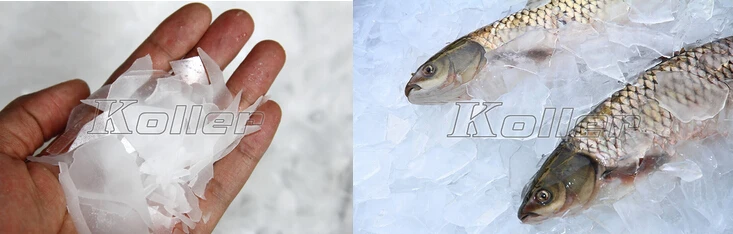

The ice is hard, transparent, sanitary and harmless to human. It can be eaten directly and has a wide applicaitons.



 Energy saving

 Koller plate ice machine has only 60KW/H per ton for power consumption, compared with 110KW/h power consumption per ton by mechanical ice dropping in the current market, Koller energ-saving rate reach more than 30% and own great economic value.



International brand





France/Germany compressor

LG(LS) Korea electric components

Italy  solenoid valve and  phase sequence protector

Danmark expansion valve

Danfoss high/low  pressure controller









Production Process



Hot Sale
Company Information



FAQ

A. Installation for ice machine:

 1). Installing by the user: we will test and install the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.



 2).Installing by Koller engineers:



 (1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user should provide accommodation and round-trip ticket for our engineer.



 (2) Before our engineers’ arrival, the installation place, electricity, water and installation tools should be prepared. Meanwhile, we will provide you a Tool List with the machine when delivery.



 (3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.



 (4) 2~ 3 workers are required to assist the installation for big project.



 (5) Any delay due to customer’s reason, it will be charged from the 8th day, USD100/day for one person as installation fee. Free of charge for one week.



B. Warranty:

1) 12 months warranty after delivery.



 2)Professional after-sales department to provide 24/7 technical support, all complaints should be replied within 24 hours.



 3)Over 10 engineers available to service machinery overseas.



 4)Free spare parts replacement within warranty period.



5)Beyond guarantee period, we will charge market price for spare parts.

C. Why choose us ?

1) We have exported our ice machines to more than 150 countries ;



 2)Excellent Brand of China Ice Machine Industry;



 3)The Drafting Committee of National Ice Machine Industrial Standard;



 4)Produce & Academic Research Strategy Cooperating Partner with Tsing Hua University.
